รายละเอียดสินค้า

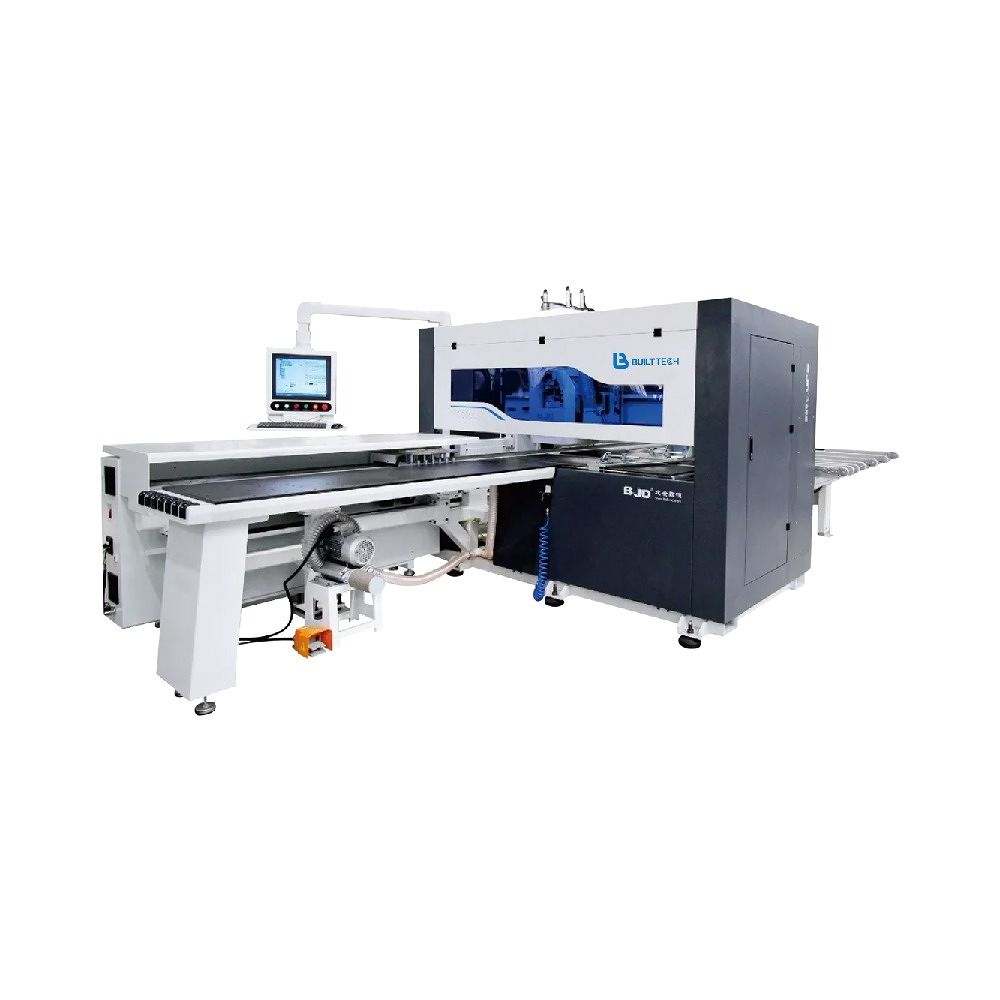

CNC 6-Sided Drilling Machine
ราคาเริ่มต้น
1 หน่วยขึ้นไป
1,3xx,xxx
บาท
คุณสมบัติ
| Dimension | 5210x2700x2190 mm |
| Minimum width of the sheet | 50 mm |
| Minimum length of sheet | 1500 mm |
| Maximum width of the sheet | 1200 mm |
| Maximum thickness of the sheet | 60 mm |
| Maximum drilling depth | 20 mm |
| Workbench height | 900 mm |
| Y-axis stroke | 4765 mm |
| Y-axis maximum speed | 150 m/min |
| X-axis stroke | 1660 mm |
| X-axis maximum speed | 80 m/min |
| Z-axis stroke | 100 mm |
| Z-axis maximum speed | 50 m/min |
| Drive motor | Servo |
| Operating voltage | 380V 50Hz |
| Top and down carving spindle | 3.5KW Wind Cold |
| Spindle speed | 18000 rpm |
| Upper CNC drill configuration | 12V8H*2 |
| Under CNC drill configuration | 7V+1T |
| Total power | 23 Kw |
| Operating air pressure | 0.6-0.8 Mpa |
| Control system | Higerman |
| How to locate | Automatic |
| Auxiliary air gun | Yes |
| Oil injection system | Automatic |
| Drive | Delta 3.7Kw |
| Guide rail | PM/Hiwin |
| Electrical components | Schneider, Omron |
รายละเอียดสินค้า
สามารถติดต่อดูสินค้าได้ที่
Tel : 095 359 5695 (คุณวุฒิ)
Line@ : @builttech
Facebook : Builttech System
